Mitsubishi Multi-Zone Mini-Split Systems in Encino
First, the answer: Encino Mitsubishi HVAC designs, installs, and services Mitsubishi MXZ and MXZ-SM multi-zone systems for Encino estates 91316 and 91436, from Encino Hills to Amestoy Estates, where one outdoor unit drives up to eight indoor heads. A whole-home build runs $9,000 to $20,000, so call (213) 805-8137 or book online.
The short list
- MXZ-SM SMART MULTI is the current platform; one condenser drives 2-8 indoor heads.
- One platform takes any mix of M-Series, P-Series, and CITY MULTI indoor units.
- Mix wall heads, MLZ cassettes, MFZ floor consoles, and SVZ ducted air handlers.
- Whole-home multi-zone install: roughly $9,000-$20,000 in 2026 SoCal pricing.
- HZ/MHZ suffixes add Hyper-Heating; single-zone faults often trace to the branch box.
- Independent design and service; in-warranty units to authorized service first.
Why do Encino estates need multi-zone systems?
The estate footprints that define Encino - sprawling single-story ranches and big-lot luxury rebuilds - are the textbook case for multi-zone. A single central system fights itself across a 300-foot ranch wing, a double-height great room, and a shaded north bedroom, leaving some rooms cold and others stuffy. A Mitsubishi MXZ-SM SMART MULTI condenser lets each space hold its own setpoint and only cools the rooms in use, which is both more comfortable and more efficient on the valley's heavy summer load.
| Component | Role | Notes |
|---|---|---|
| MXZ-SM SMART MULTI | Outdoor unit, 2-8 zones | Current platform; 36/42/48/60 kBTU classes |
| MSZ wall heads | Bedrooms, living spaces | WR/HM/FS/FX by efficiency and features |
| MLZ ceiling cassette | Finished ceilings | EZ-FIT fits between joists |
| MFZ floor console | Low-wall, baseboard replacement | Multi-directional vanes, quiet |
| SVZ/MVZ ducted | Pool house, basement, ducted wing | Off the same outdoor unit |
Which MXZ-SM outdoor unit fits an estate?
The SMART MULTI platform comes in capacity classes, and zone count plus total load picks the box:
- MXZ-SM36NAMHZ (36 kBTU). Two to four heads for a mid-size ranch or a guest wing; the Hyper-Heating MHZ suffix adds cold-climate reserve Encino rarely needs but pairs with high-efficiency heads.
- MXZ-SM42NAMHZ (42 kBTU). A step up for more zones or a double-height great room that pulls extra load.
- MXZ-SM48NAMHZ (48 kBTU). Larger estates running five-plus heads or a mix that includes a ducted SVZ handler.

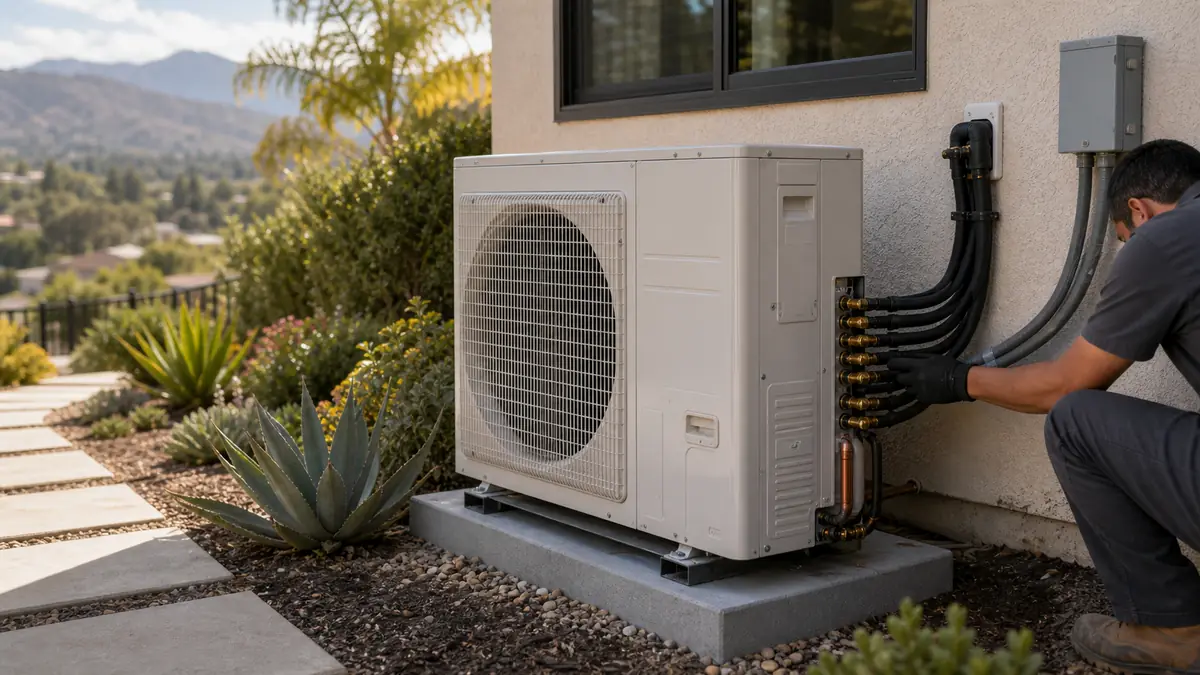

Every box in that range reads the full Mitsubishi indoor catalog - M-Series, P-Series, and CITY MULTI alike - which is how one condenser ends up running MSZ wall heads, an MLZ ceiling cassette, an MFZ floor console, and an SVZ ducted handler out to a pool house, all off a single refrigerant circuit and one electrical drop.
How is a multi-zone system diagnosed when one zone fails?
The advantage of multi-zone - many heads on one outdoor unit - is also its diagnostic wrinkle. When a single room stops cooling, the fault often is not in that head; it is in the branch-box port that feeds it or in the shared S1/S2/S3 inter-unit wiring, which throws E6 through E9 communication codes. We test each zone back to the outdoor unit and the branch box, so a fix on one head does not leave the real fault hiding for next month. Sealed-system and inverter faults still show the usual U-codes.
| Symptom | Code | Likely source |
|---|---|---|
| One zone weak or dead, others fine | E6 to E9 | Branch-box port or S1/S2/S3 wiring to that head |
| Wiring / inter-unit cable fault | EA / EB | Loose or miswired interconnect terminal |
| Whole system trips on startup | U5 / U6 | Inverter PCB or DC compressor (meter both) |
| Weak output across zones, frost | U7 / P8 | Low charge or a leak in the shared circuit |
| Water under one head | P4 / P5 | That head's drain pan or pump, not the system |
How do you design a multi-zone system for an estate?
Design opens with a room-by-room Manual J load calculation rather than a guess, since oversizing a zone sends it into short-cycling while undersizing leaves it gasping on the hottest afternoons. We pick the head type per room - wall heads where they fit, recessed MLZ cassettes where finishes demand it, a ducted SVZ handler for a basement or pool house - then place the single MXZ outdoor unit for airflow and quiet on a close estate lot. The whole design ties into our installation process and the buying guide.
Multi-zone vs several single-zone units - which is right for your home?
The break point is roughly three rooms. Below that, separate single-zone MUZ condensers are often simpler and let each system fail independently. At three or more rooms, a single MXZ-SM condenser usually wins: one set of line-set penetrations, one electrical circuit, one outdoor unit to maintain, and a cleaner exterior on a visible estate lot rather than a row of condensers along the side yard. Multi-zone also modulates a shared inverter across the zones in use, which is efficient on the valley's heavy cooling load. The trade-offs are honest: a multi-zone system costs more up front, a shared-circuit fault can touch several zones at once, and the diagnostic work is more involved. For a single problem room, a single wall head is the better value; for whole-home coverage on a sprawling Encino floor plan, multi-zone is the design that fits.
Is a multi-zone system right for your Encino home?
A few questions settle it. Are you covering three or more rooms, or just one hot zone? Is the home a finished estate where a row of outdoor units would mar the exterior, or a simpler footprint where placement is easy? Do you want each space on its own setpoint across a 300-foot ranch wing and a double-height great room? If the answers point to whole-home, zoned, discreet coverage, an MXZ-SM SMART MULTI is the right platform, and we will size it room by room rather than by a blanket tonnage. The design ties into our installation process and the buying guide, where we run the multi-zone-versus-single-zone math against your specific floor plan.
Multi-zone questions from Encino owners
How many zones can one Mitsubishi outdoor unit run in Encino?
An MXZ or MXZ-SM SMART MULTI condenser can drive two to eight indoor heads depending on the model and capacity. For a sprawling Encino estate that means one well-placed outdoor unit can serve the primary suite, guest wing, office, and a ducted air handler for a pool house, instead of a row of condensers.
Can I mix wall heads, cassettes, and ducted units on one system?
Yes. The MXZ-SM SMART MULTI platform reads M-Series, P-Series, and CITY MULTI indoor units off the same outdoor box, which is why one system can blend MSZ wall heads, MLZ ceiling cassettes, MFZ floor consoles, and an SVZ ducted air handler. Large Encino floor plans - long ranch wings, hillside levels - are exactly the case that flexibility was built for.
Why does only one zone on my multi-zone act up?
On a multi-zone system a single misbehaving head usually traces to its branch-box port or the shared S1/S2/S3 inter-unit wiring rather than the head itself, often showing E6 through E9 communication codes. We test each zone back to the outdoor unit so the fix lands on the real fault.
Is a multi-zone system worth it over several single-zone units?
For three or more rooms, usually yes. One outdoor unit means one set of line-set penetrations, one electrical circuit, and a cleaner exterior on a visible estate lot. The install cost is higher up front, but the maintenance footprint and curb appeal favor multi-zone for whole-home coverage.
How do you keep a multi-zone install quiet and discreet on an estate?
We place the single MXZ outdoor unit where it gets airflow yet stays out of sight and earshot of patios and neighbors, route line sets through chases and attics, and choose recessed MLZ cassettes where wall heads would clash with finishes. On close estate lots that placement work matters as much as the equipment.
